Model DX Chilled Mirror Hygrometer Sensor

The Model DX primary method chilled mirror dew/ frost point sensor is a direct insertion hygrometer sensor with an integral PRT temperature sensor, wide operating range and superior temperature stability. The new DX can be inserted into a gas process stream or used to monitor the local environment. With its integrally mounted temperature sensor, a single penetration reduces installation cost …

Features

  • Direct insertion expands Edgetech Instruments sensor choices for easy installation
  • Integrally mounted PRT temperature sensor reduces installation cost and improves RH accuracy
  • Active sensor temperature compensation and isolation eliminate drift
  • Compact design reduces space needed for installation
  • Integrated micro aspirator option for faster response in static environments
  • Integrated filter options for use in dirty environments

DewTrak II Chilled Mirror Transmitter

The Edgetech Instruments DewTrak II transmitter is a precision dewpoint hygrometer for industrial and process applications. It measures dew/frost point and relative humidity using a primary method chilled mirror sensor to continuously monitor the water vapor content of gases, and a platinum resistance thermometer to accurately measure temperature, without drift or the need for routine recalibration. The DewTrak II is …

Features

  • Precision dew/frost point or relative humidity transmitter for industrial, process and area monitoring
  • Fast responding primary method chilled mirror sensor with integral PRT retains accuracy without periodic recalibration
  • Remote, insertion or local wall mount sensor configurations to fit application requirements
  • Configurable analog outputs, alarm relays and bi-directional serial interface
  • Bi-directional serial interface
  • Powered by 24 Vdc.

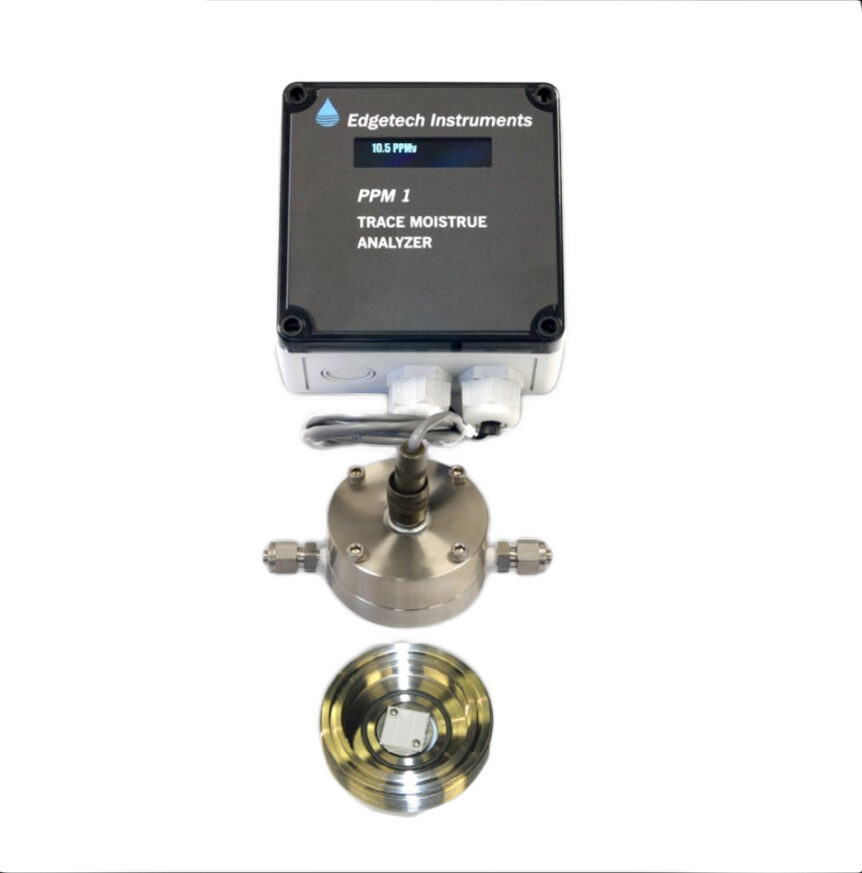

PPM1 Trace Moisture Analyzer

PPM1 Trace Moisture Analyzer

The PPM1 uses an electrolytic, phosphorus pentoxide sensor in combination with a proprietary semipermeable diffusion membrane to measure trace moisture as parts per million by volume (ppmv) water vapor or dew/frost point in dry inert gases. The PPM1 is modular and may be mounted remotely. It is packaged in an IP66/67, NEMA 4 enclosure and comes complete with two FORM …

Features

  • Trace moisture transmitter for monitoring moisture levels in dew/frost point and ppmv
  • Wide measurement range of 0.1 to 1250 ppmv covers many industrial and research applications
  • Fundamental measurement principle traceable to NIST standards
  • Packaged in an IP66/67, NEMA 4 enclosure with two alarm relays, two analog outputs and a RS-232 bi-directional serial interface
  • Optional VCR sample connections
  • For dry inert gas applications
