Portable Oxygen Analyzer (AM560)
Real-Time Trace & Percent Oxygen Analysis for Portable Gas Applications
Starting at: $3,850

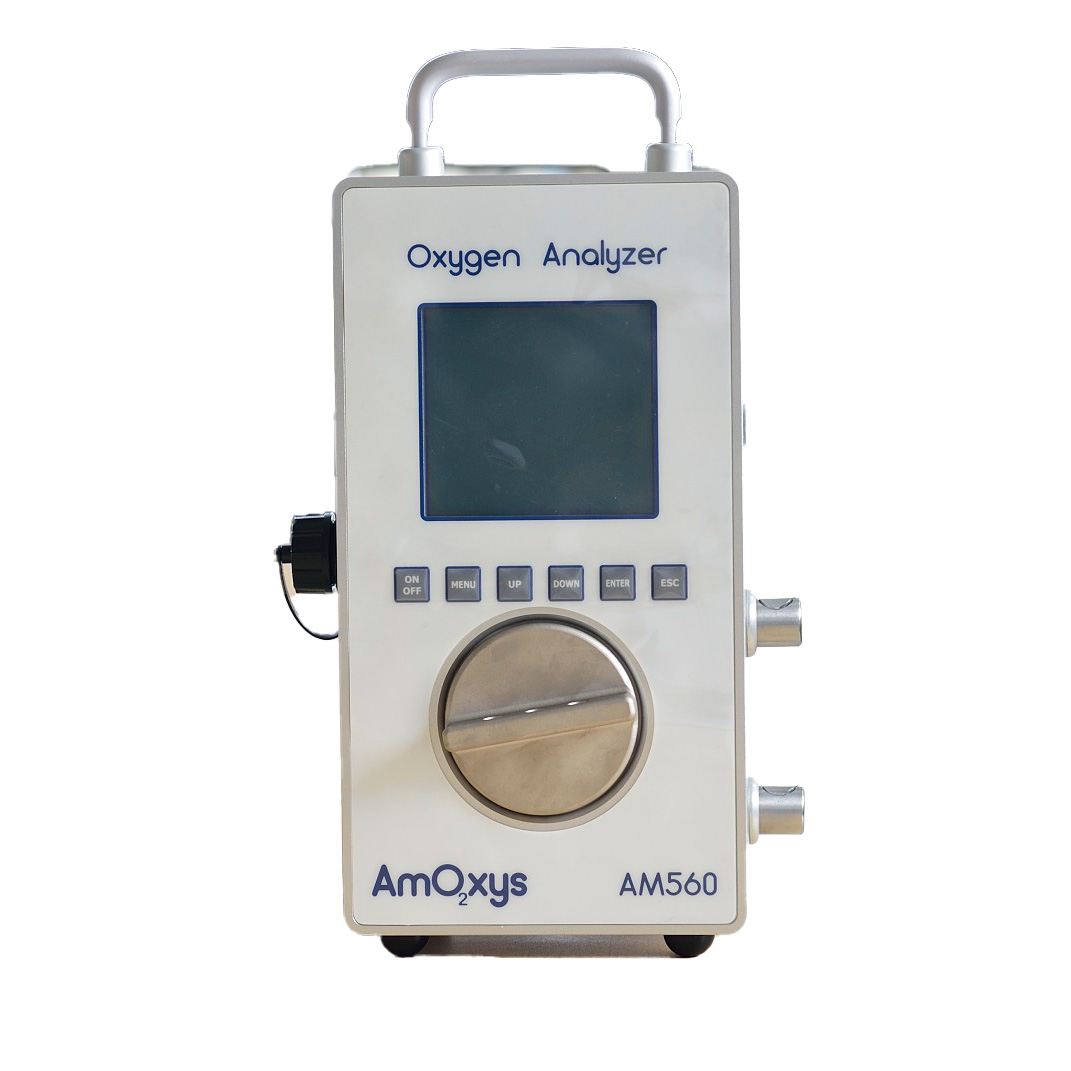

The AmO2xys (AM560) is a handheld oxygen analyzer engineered for portability, accuracy, and versatility. Designed for both trace (PPM) and percent-level oxygen measurement, the AM560 is ideal for field diagnostics, spot checks, and portable gas sampling in diverse industrial and lab applications.
With its rugged anodized aluminum enclosure, intuitive backlit display, and removable USB data logging, this portable oxygen analyzer provides high-precision results wherever oxygen levels need monitoring. Continuous analysis during charging and quick disconnect fittings streamline operation in dynamic settings like pipelines, welding stations, and headspace analysis.
Key Features
| Feature | Specification & Options |
|---|---|
| Sensor Configurations | Electrochemical sensors for trace and percent oxygen; unaffected by H₂, He, hydrocarbons, and CO₂ (select model) |
| Measurement Range | 0–10 PPM (low range), multiple trace/percent options up to 25% O₂ |
| Response Time | T90 <7 seconds |

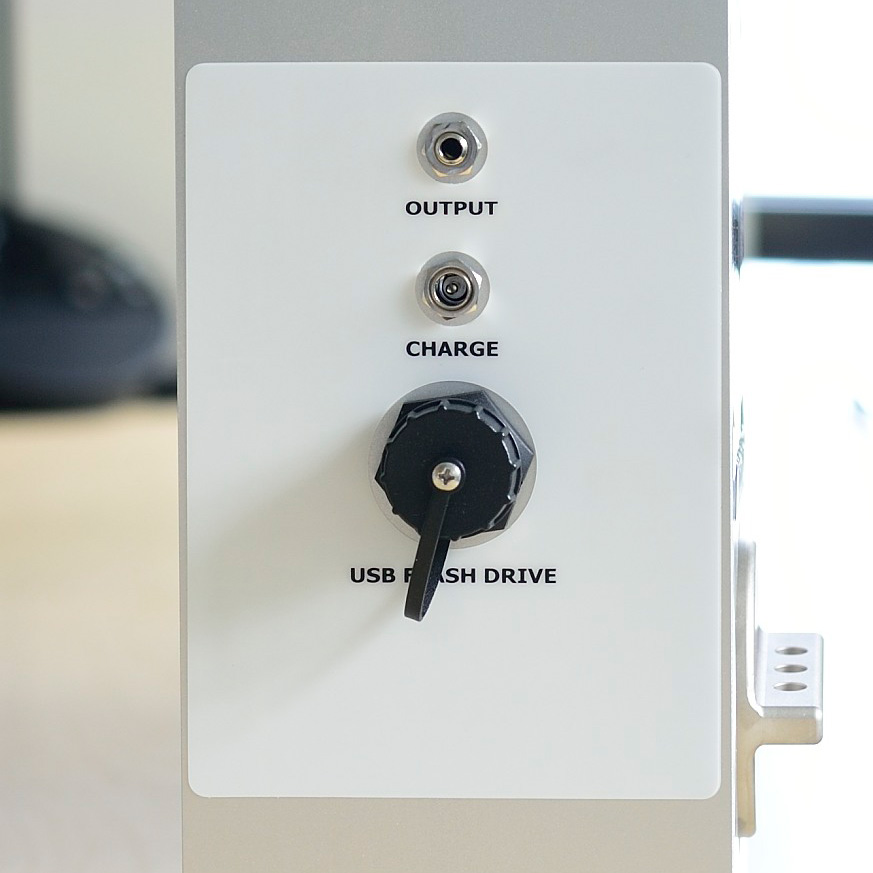

| Data Logging | Removable USB flash drive (CSV format); logs data at 1-minute intervals for up to 50 years (8GB drive) |
| Display | Large, backlit display designed for readability in direct sunlight |
| Charging | Supports continuous measurement while charging |
| Enclosure | Rugged anodized aluminum housing |
| Dimensions | 12.0 x 6.0 x 5.0 inches |
| Weight | 5.75 lbs |
| Output Options | 0–1 VDC |

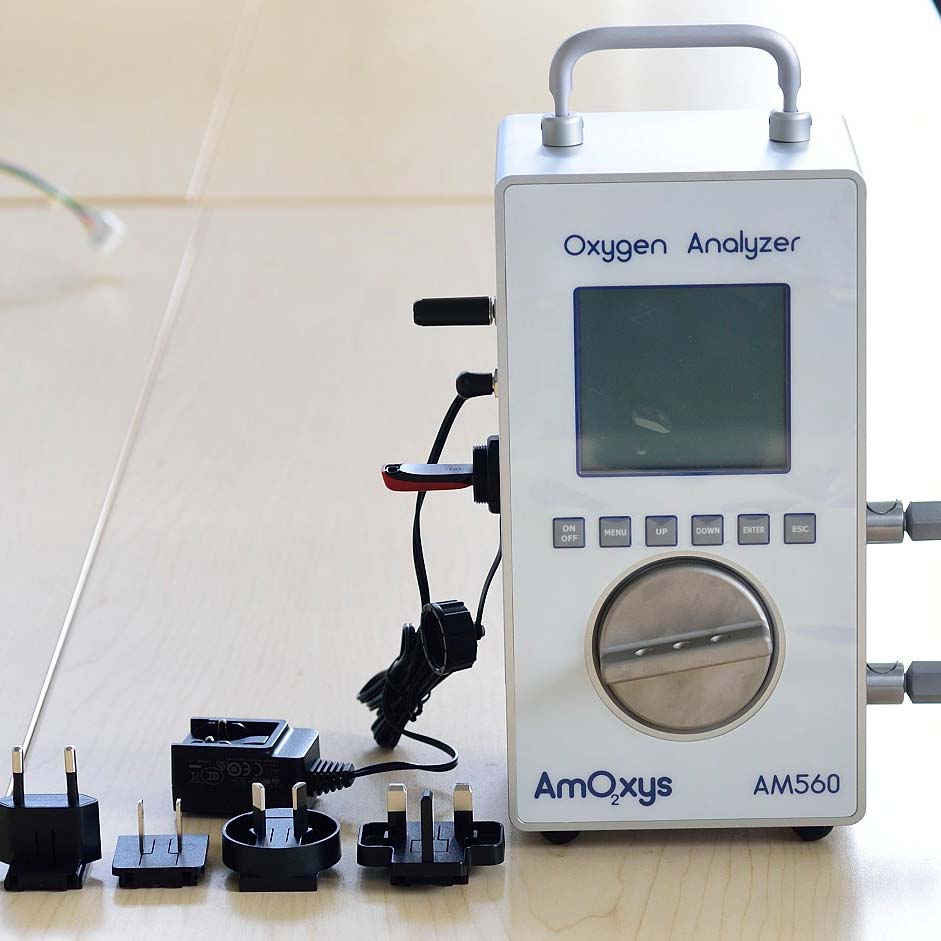

| Power | Rechargeable battery + 100–240 VAC adapter |
| Temperature Range | 0–50 °C operating range |
| Sensor Life | 20–25 months |
| Calibration | Periodic calibration recommended using ambient air or certified gas |
Trace & Percent Oxygen in One Device Easily swap between ultra-low oxygen (PPM) and percent-level detection with field-replaceable sensors. Truly Portable and User-Friendly Designed for easy transport and operation—lightweight, rugged, and equipped with a large sunlight-readable display. Instant Data Access Export data via USB to Excel or other platforms with no software needed. Flexible Application Use Ideal for spot checks, leak detection, and mobile diagnostics across various industrial sectors. Low Maintenance, Long Life Self-contained sensors with no cleaning or electrolyte top-offs required.
Q: What oxygen ranges can the AM560 measure?
A: The AM560 measures trace oxygen starting at 0–10 PPM and can also be configured with percent-level sensors (up to 25% O₂) depending on the application.
Q: How does data logging work?
A: The analyzer logs readings to a removable USB flash drive as CSV files, which can be opened in Excel or other spreadsheet programs.
Q: How often should I calibrate the device?
A: Edgetech recommends calibration every 2–3 months, or more frequently if application demands. Use ambient air or certified gas for calibration.
Q: Can the analyzer operate while charging?
A: Yes. The AM560 supports continuous measurement during battery charging.
Q: What’s the typical lifespan of the oxygen sensor?
A: 20–25 months under normal conditions.
Configure Your System
Need help selecting the right sensor? Edgetech offers multiple sensor types:
- 16T303: Trace O₂ in inert gas
- 16T304: Trace O₂ in CO₂ or acidic gases
- 16P306: Percent O₂ in hydrogen gas
- 16P307: Percent O₂ in inert gas
- 16P103: Percent O₂ in pure oxygen
Also available: Protective carrying case (AMENC-560) with foam insert.
Call 978-310-7760 or request a quote to configure your portable oxygen analyzer.
