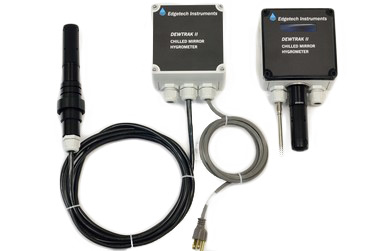

DewTrak II Chilled Mirror Transmitter

Compact, Direct-Reading Dew Point Transmitter for OEM and Process Integration

Starting at: $3,150.00

The DewTrak II Chilled Mirror Transmitter delivers high-precision, drift-free dew point measurement in a compact format built for integration. Ideal for OEM installations, environmental chambers, gloveboxes, and other process-critical applications, DewTrak II uses the chilled mirror principle to provide direct, NIST-traceable measurements—without relying on calculated estimates or sensors prone to drift. With multiple form factors, digital/analog outputs, and cable runs up to 100 feet, it’s a trusted solution for automated systems, controlled environments, and tight installation footprints that don’t require a local display.

Request Price & Availability

Key Features


Feature Description
Measurement PrinciplePrimary measurement via chilled mirror condensation detection
Sensor Head OptionsFan-cooled and liquid-cooled variants for a wide dew point range
Dew/Frost Point Range–40 °C to +90 °C (fan-cooled); down to –80 °C (liquid-cooled with cooling fluid)
Temperature DepressionUp to 90 °C (fan-cooled), up to 115 °C (liquid-cooled)
Accuracy±0.2 °C dew point
Output Options4–20 mA, RS-232, and RS-485 Modbus RTU
Power Supply24 VDC

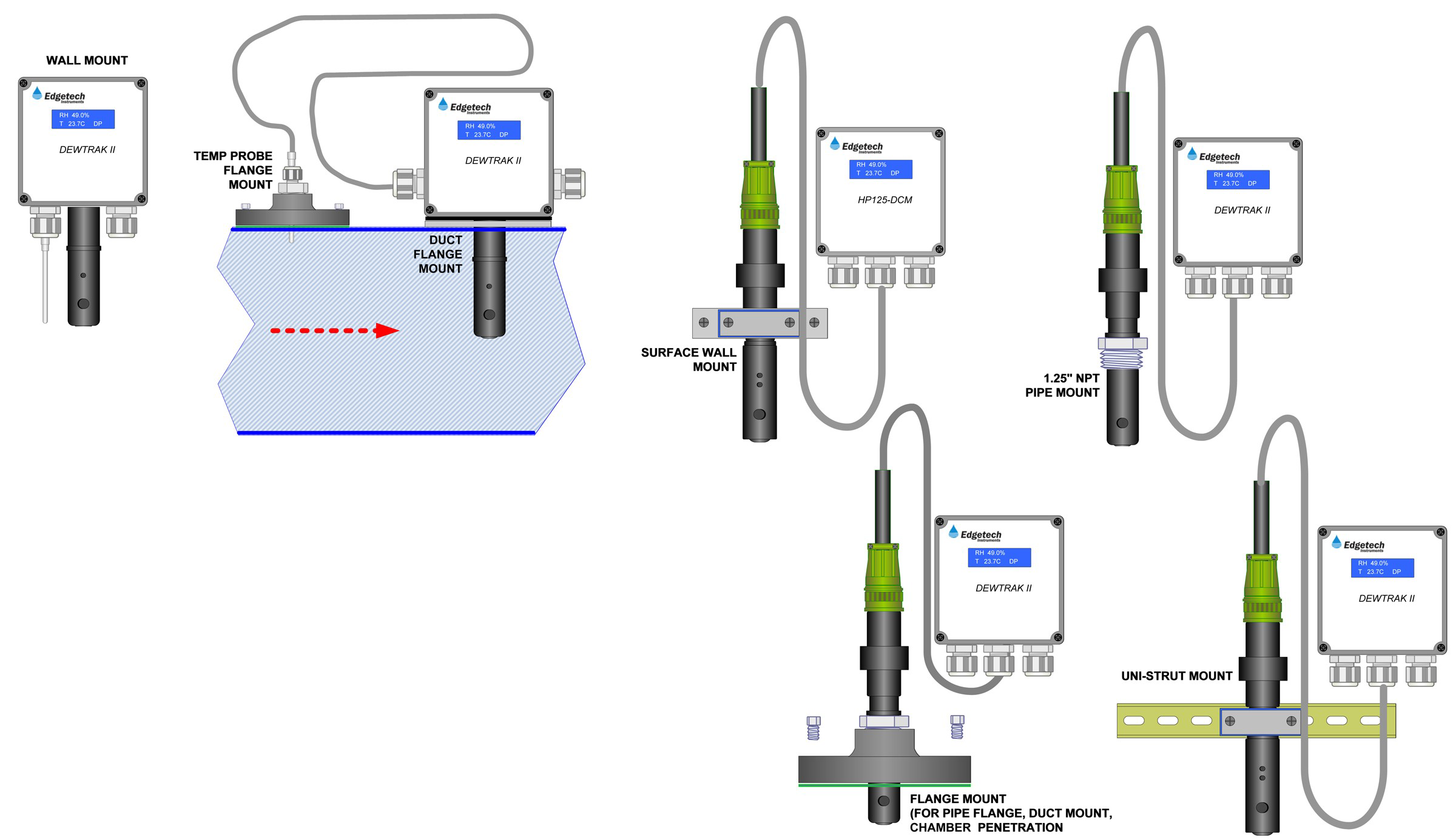

MountingCompact aluminum enclosure with optional wall mount bracket
ComplianceISO 9001:2015 registered, ISO/IEC 17025:2017 accredited lab

Compact and Integration-Ready
Ideal for OEMs and system integrators—no local display required<

Primary Measurement Accuracy
Delivers true dew point via chilled mirror reflection detection<

Flexible Cooling Options
Fan- and liquid-cooled sensors cover an exceptionally wide dew point range<

Digital and Analog Outputs
Connects easily to SCADA, PLC, or data acquisition systems<

Minimal Maintenance
No replacement sensors; simple periodic cleaning of the mirror<

Rugged for Industrial Use
Aluminum housing, stable optics, and field-proven reliability in demanding settings<

OEMs and Equipment Manufacturers

  • Integration into custom environmental control systems
  • OEM drying systems and clean air generation
  • Modular test equipment and glovebox control

Industrial & Process Control

  • Inline process monitoring in compressed gas, power gen, and chemical production
  • Trace moisture monitoring in inert gas blanketing systems
  • Semiconductor and electronics drying processes

Environmental & Testing Chambers

  • Environmental simulation chambers
  • Automotive and aerospace validation systems
  • Climatic testing in quality assurance labs

Gloveboxes & Controlled Environments

  • Moisture monitoring in purged enclosures
  • Low-dew-point control for sensitive product handling
  • Pharmaceutical, medical device, or bioprocess containment

Q: What makes the DewTrak II different from a full chilled mirror hygrometer?

A: DewTrak II is a transmitter—it offers the same chilled mirror measurement accuracy but is built to send signals to external control systems, without a local display interface. If you need a full unit, we recommend you consider our DewMaster Chilled Mirror Hygrometer.

Q: What’s the difference between the fan-cooled and liquid-cooled versions?

A: Fan-cooled sensors allow for temperature depression up to 90 °C. Liquid-cooled versions extend the depression further, down to –80 °C dew/frost point.

Q: How often is calibration required?

A: Annual calibration is typical. All calibrations are performed in our ISO/IEC 17025-accredited lab and are fully NIST-traceable.



Configure Your System

Need a custom integration or sensor cooling method? We support:

  • Liquid-cooled sensor heads
  • Sensor cable extensions up to 100 feet
  • Custom bracket mounting
  • Analog/digital hybrid output configurations

Call 978-310-7760 or request a quote to configure your DewTrak II transmitter.
