ATDM Air Temperature Probe

  • 1
    Sensing Element: PT 100ohm @ 0°C (32°F) A=00385+/-0.1% @ 0°C
  • 2
    Accuracy: System @ 25°C Standard +/-0.1°C
  • 3
    Measurement Range: -100°C to 100°C (-148°F to 212°F)
  • 4
    Strain Relief: Bell spring made of stainless steel
  • 5
    Response Time: 7 seconds for +25°C to 70°C (+77°F to 158°F)
  • 6
    Sensor Material: 316 Stainless Steel
  • 7
    Cable: 10 ft (3M) length- Teflon Insulated material (custom lengths available)
  • 8
    Weight: 2lbs (1.8kg)
  • 9
    Power: From electronics
  • 10
    Termination: Connector or flying leads
  • 11
    Probe Dimensions: 6” (152.4mm) long * 0.250” (6.35mm) wide

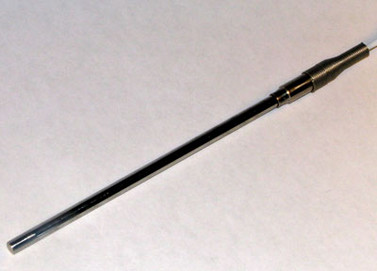

Edgetech Instruments Air Temperature probe, stainless steel sheath with 10-foot cable and connector.
